TI-GEAR-S
Preis auf Anfrage
MULTI-PURPOSE THERMAL WEAPON SIGHTS TI-GEAR-S

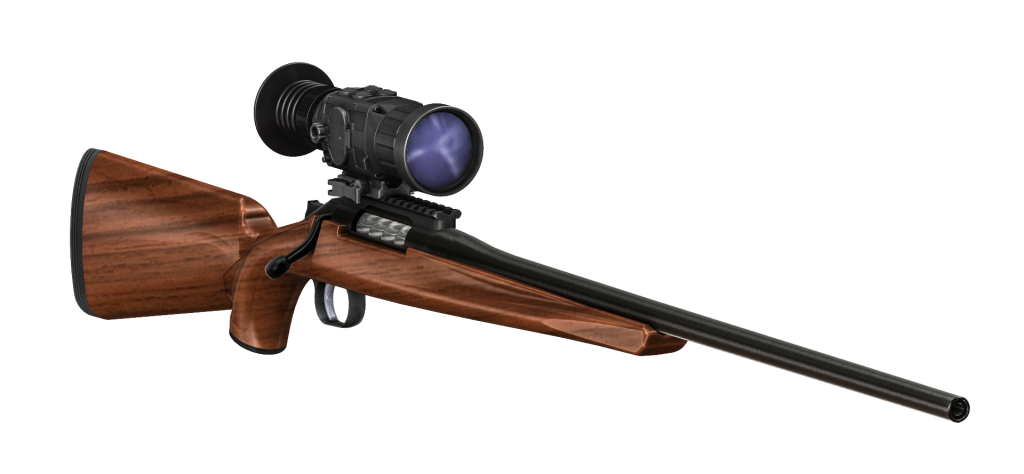

Meet the legendary GSCI quality in the new line of thermal imagers. TI-GEAR-S is the high-performance thermal weapon sights. Suitable for any mission in any environment, this easy to use, plug-and-play system is a cost-effective tool for observation, aiming and engagement in both broad daylight and extreme darkness on almost any firearm.
Advantages of TI-GEAR-S:
Ergonomic, User-Friendly Keypad
Fast Germanium Objective Lenses
Smooth and Precise Focus Adjustment
Comfortable Eyepiece with Long Eyerelief
Canadian-Made, ITAR-Free System, Available for Export
Full-Size Colour AMOLED Display
Multi-Use MIL-STD-1913 Side Mounting Bracket
All-Aluminum Rugged Housing
High-Performance, Auto-NUC Shutterless, Silent FPA
Multiple Weapon Mounts Available
|
TECHNICAL DATA |
||
|
|
TI-GEAR-S335 |
TI-GEAR-S635 |
|
Optical Magnification |
2.1X |
1.4X |
|
Objective Lens |
35mm, f/1.0 |
|
|
Field of View |
10.6°x8° |
17.7°x13.3° |
|
Focusing Range |
0.5m .. Infinity |
|
|
Diopter Adjustment Range |
-6 .. +4 |
|
|
FPA Resolution |
384×288 |
640×480 |
|
FPA Type, Pitch |
Uncooled, a-Si, Shutterless, Silent, Auto-NUC (Uninterrupted Operation), 17µm |
|
|
FPA Sensitivity |
<60mK |
|
|
FPA Refresh Rate |
50Hz |
|
|
Digital Zoom |
1X, 2X, 4X |
1X, 2X, 4X, 8X |
|
Internal Display |
AMOLED, Colour, 800×600, 0.6’’ Diagonal |
|
|
Imaging Modes |
1 Monochrome + 8 Colour |
|
|
Electronic Reticles |
Yes: 7 patterns |
|
|
Video Recorder |
Optional: External with SD Card |
|
|
Detection Man (1.7×0.5m) / Vehicle (2.3×2.3m) |
1000m / 1350m |
|
|
Accepted Batteries |
2 (two) CR123 of Any Type: Lithium, Ni-MH, Alkaline, etc. |
|
|
Universal Port |
Yes: Video-Out and External Power (4VDC .. 15VDC) |
|
|
Battery Life |
Up to 7 Hours |
|
|
Environmental Protection |
IP66 or Better (Optional) |
|
|
Dimensions |
158 x 60 x 59 mm (6.22 x 2.36 x 2.32 in) |
|
|
Weight |
433 grams (15.27 oz) |
|
|
Operating Temperature |
-40°C .. +50°C |
|
|
Warranty |
7 Years, Limited |
|
|
Export |
Available Worldwide (Canadian Export Permit Required. GSCI provides assistance in obtaining the Permit) |
|
|
TECHNICAL DATA |
||
|
|
TI-GEAR-S350 |
TI-GEAR-S650 |
|
Optical Magnification |
3X |
2X |
|
Objective Lens |
50mm, f/1.3 |
|
|
Field of View |
7.5°x5.6° |
12.4°x9.3° |
|
Focusing Range |
1m .. Infinity |
|
|
Diopter Adjustment Range |
-6 .. +4 |
|
|
FPA Resolution |
384×288 |
640×480 |
|
FPA Type, Pitch |
Uncooled, a-Si, Shutterless, Silent, Auto-NUC (Uninterrupted Operation), 17µm |
|
|
FPA Sensitivity |
<60mK |
|
|
FPA Refresh Rate |
50Hz |
|
|
Digital Zoom |
1X, 2X, 4X |
1X, 2X, 4X, 8X |
|
Internal Display |
AMOLED, Colour, 800×600, 0.6’’ Diagonal |
|
|
Imaging Modes |
1 Monochrome + 8 Colour |
|
|
Electronic Reticles |
Yes: 7 patterns |
|
|
Video Recorder |
Optional: External with SD Card |
|
|
Detection Man (1.7×0.5m) / Vehicle (2.3×2.3m) |
1660m / 2250m |
|
|
Accepted Batteries |
2 (two) CR123 of Any Type: Lithium, Ni-MH, Alkaline, etc. |
|
|
Universal Port |
Yes: Video-Out and External Power (4VDC .. 15VDC) |
|
|
Battery Life |
Up to 7 Hours |
|
|
Environmental Protection |
IP66 or Better (Optional) |
|
|
Dimensions |
172 x 60 x 59 mm (6.77 x 2.36 x 2.32 in) |
|
|
Operating Temperature |
-40°C .. +50°C |
|
|
Warranty |
7 Years, Limited |
|
|
Export |
Available Worldwide (Canadian Export Permit Required. GSCI provides assistance in obtaining the Permit) |
|
|
TECHNICAL DATA |
||
|
|
TI-GEAR-S350F |
TI-GEAR-S650F |
|
Optical Magnification |
3X |
2X |
|
Objective Lens |
50mm, f/1.0 |
|
|
Field of View |
7.5°x5.6° |
12.4°x9.3° |
|
Focusing Range |
1m .. Infinity |
|
|
Diopter Adjustment Range |
-6 .. +4 |
|
|
FPA Resolution |
384×288 |
640×480 |
|
FPA Type, Pitch |
Uncooled, a-Si, Shutterless, Silent, Auto-NUC (Uninterrupted Operation), 17µm |
|
|
FPA Sensitivity |
<60mK |
|
|
FPA Refresh Rate |
50Hz |
|
|
Digital Zoom |
1X, 2X, 4X |
1X, 2X, 4X, 8X |
|
Internal Display |
AMOLED, Colour, 800×600, 0.6’’ Diagonal |
|
|
Imaging Modes |
1 Monochrome + 8 Colour |
|
|
Electronic Reticles |
Yes: 7 patterns |
|
|
Video Recorder |
Optional: External with SD Card |
|
|
Detection Man (1.7×0.5m) / Vehicle (2.3×2.3m) |
1660m / 2250m |
|
|
Accepted Batteries |
2 (two) CR123 of Any Type: Lithium, Ni-MH, Alkaline, etc. |
|
|
Universal Port |
Yes: Video-Out and External Power (4VDC .. 15VDC) |
|
|
Battery Life |
Up to 7 Hours |
|
|
Environmental Protection |
IP66 or Better (Optional) |
|
|
Dimensions |
172 x 60 x 60 mm (67.7 x 23.6 x 23.6 in) |
|
|
Operating Temperature |
-40°C .. +50°C |
|
|
Warranty |
7 Years, Limited |
|
|
Export |
Available Worldwide (Canadian Export Permit Required. GSCI provides assistance in obtaining the Permit) |
|
|
TECHNICAL DATA |
||
|
|

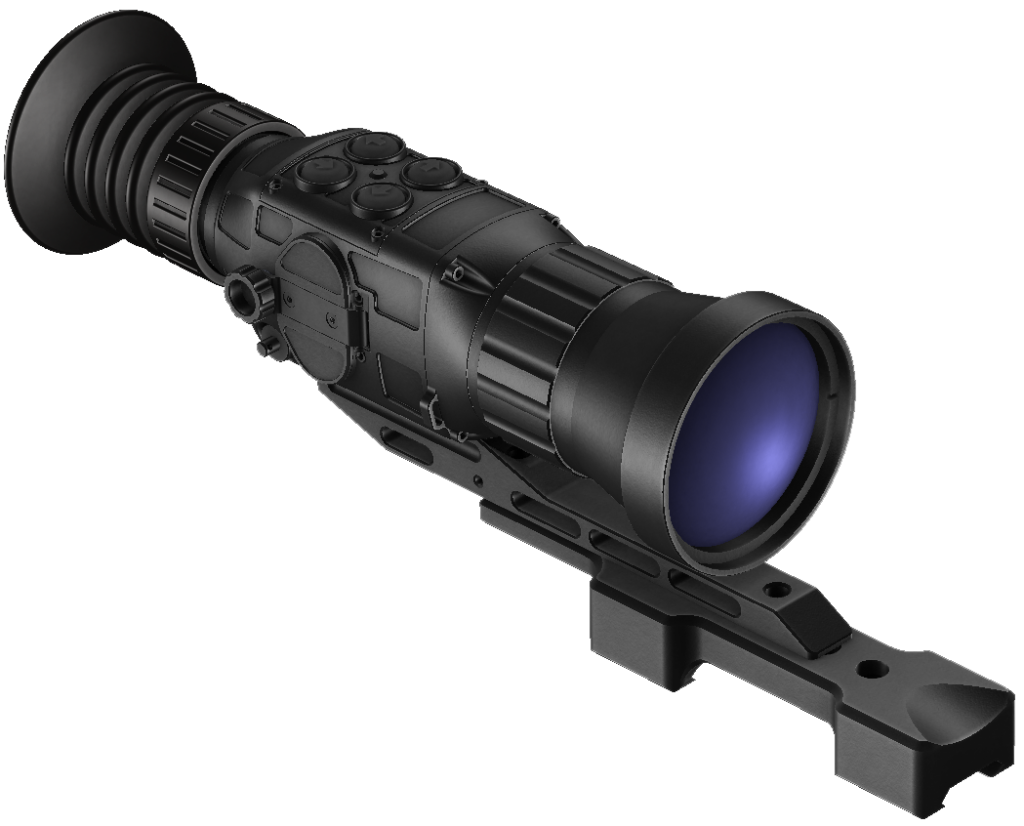

TI-GEAR-S375 |
TI-GEAR-S675 |
|
Optical Magnification |
4.5X |
3X |
|
Objective Lens |
75mm, f/1.3 |
|
|
Field of View |
5.0°x3.7° |
8.3°x6.2° |
|
Focusing Range |
2m .. Infinity |
|
|
Diopter Adjustment Range |
-6 .. +4 |
|
|
FPA Resolution |
384×288 |
640×480 |
|
FPA Type, Pitch |
Uncooled, a-Si, Shutterless, Silent, Auto-NUC (Uninterrupted Operation), 17µm |
|
|
FPA Sensitivity |
<60mK |
|
|
FPA Refresh Rate |
50Hz |
|
|
Digital Zoom |
1X, 2X, 4X |
1X, 2X, 4X, 8X |
|
Internal Display |
AMOLED, Colour, 800×600, 0.6’’ Diagonal |
|
|
Imaging Modes |
1 Monochrome + 8 Colour |
|
|
Electronic Reticles |
Yes: 7 patterns |
|
|
Video Recorder |
Optional: External with SD Card |
|
|
Detection Man (1.7×0.5m) / Vehicle (2.3×2.3m) |
2500m / 3380m |
|
|
Accepted Batteries |
2 (two) CR123 of Any Type: Lithium, Ni-MH, Alkaline, etc. |
|
|
Universal Port |
Yes: Video-Out and External Power (4VDC .. 15VDC) |
|
|
Battery Life |
Up to 7 Hours |
|
|
Environmental Protection |
IP66 or Better (Optional) |
|
|
Dimensions |
193 x 66 x 66 mm (7.6 x 2.6 x 2.6 in) |
|
|
Weight |
498 grams (17.56 oz) |
|
|
Operating Temperature |
-40°C .. +50°C |
|
|
Warranty |
7 Years, Limited |
|
|
Export |
Available Worldwide (Canadian Export Permit Required. GSCI provides assistance in obtaining the Permit) |
|
| TECHNICAL DATA | TECHNICAL DATA | TECHNICAL DATA | TECHNICAL DATA | |||||||||||
| TI-GEAR-S335 | TI-GEAR-S635 | TI-GEAR-S350 | TI-GEAR-S650 | TI-GEAR-S350F | TI-GEAR-S650F | TI-GEAR-S375 | TI-GEAR-S675 | |||||||
| Optical Magnification | 2.1X | 1.4X | Optical Magnification | 3X | 2X | Optical Magnification | 3X | 2X | Optical Magnification | 4.5X | 3X | |||
| Objective Lens | 35mm, f/1.0 | Objective Lens | 50mm, f/1.3 | Objective Lens | 50mm, f/1.0 | Objective Lens | 75mm, f/1.3 | |||||||
| Field of View | 10.6°x8° | 17.7°x13.3° | Field of View | 7.5°x5.6° | 12.4°x9.3° | Field of View | 7.5°x5.6° | 12.4°x9.3° | Field of View | 5.0°x3.7° | 8.3°x6.2° | |||
| Focusing Range | 0.5m .. Infinity | Focusing Range | 1m .. Infinity | Focusing Range | 1m .. Infinity | Focusing Range | 2m .. Infinity | |||||||
| Diopter Adjustment Range | -6 .. +4 | Diopter Adjustment Range | -6 .. +4 | Diopter Adjustment Range | -6 .. +4 | Diopter Adjustment Range | -6 .. +4 | |||||||
| FPA Resolution | 384×288 | 640×480 | FPA Resolution | 384×288 | 640×480 | FPA Resolution | 384×288 | 640×480 | FPA Resolution | 384×288 | 640×480 | |||
| FPA Type, Pitch | Uncooled, a-Si, Shutterless, Silent, Auto-NUC (Uninterrupted Operation), 17µm | FPA Type, Pitch | Uncooled, a-Si, Shutterless, Silent, Auto-NUC (Uninterrupted Operation), 17µm | FPA Type, Pitch | Uncooled, a-Si, Shutterless, Silent, Auto-NUC (Uninterrupted Operation), 17µm | FPA Type, Pitch | Uncooled, a-Si, Shutterless, Silent, Auto-NUC (Uninterrupted Operation), 17µm | |||||||
| FPA Sensitivity | <60mK | FPA Sensitivity | <60mK | FPA Sensitivity | <60mK | FPA Sensitivity | <60mK | |||||||
| FPA Refresh Rate | 50Hz | FPA Refresh Rate | 50Hz | FPA Refresh Rate | 50Hz | FPA Refresh Rate | 50Hz | |||||||
| Digital Zoom | 1X, 2X, 4X | 1X, 2X, 4X, 8X | Digital Zoom | 1X, 2X, 4X | 1X, 2X, 4X, 8X | Digital Zoom | 1X, 2X, 4X | 1X, 2X, 4X, 8X | Digital Zoom | 1X, 2X, 4X | 1X, 2X, 4X, 8X | |||
| Internal Display | AMOLED, Colour, 800×600, 0.6’’ Diagonal | Internal Display | AMOLED, Colour, 800×600, 0.6’’ Diagonal | Internal Display | AMOLED, Colour, 800×600, 0.6’’ Diagonal | Internal Display | AMOLED, Colour, 800×600, 0.6’’ Diagonal | |||||||
| Imaging Modes | 1 Monochrome + 8 Colour | Imaging Modes | 1 Monochrome + 8 Colour | Imaging Modes | 1 Monochrome + 8 Colour | Imaging Modes | 1 Monochrome + 8 Colour | |||||||
| Electronic Reticles | Yes: 7 patterns | Electronic Reticles | Yes: 7 patterns | Electronic Reticles | Yes: 7 patterns | Electronic Reticles | Yes: 7 patterns | |||||||
| Video Recorder | Optional: External with SD Card | Video Recorder | Optional: External with SD Card | Video Recorder | Optional: External with SD Card | Video Recorder | Optional: External with SD Card | |||||||
| Detection Man (1.7×0.5m) / Vehicle (2.3×2.3m) | 1000m / 1350m | Detection Man (1.7×0.5m) / Vehicle (2.3×2.3m) | 1660m / 2250m | Detection Man (1.7×0.5m) / Vehicle (2.3×2.3m) | 1660m / 2250m | Detection Man (1.7×0.5m) / Vehicle (2.3×2.3m) | 2500m / 3380m | |||||||
| Accepted Batteries | 2 (two) CR123 of Any Type: Lithium, Ni-MH, Alkaline, etc. | Accepted Batteries | 2 (two) CR123 of Any Type: Lithium, Ni-MH, Alkaline, etc. | Accepted Batteries | 2 (two) CR123 of Any Type: Lithium, Ni-MH, Alkaline, etc. | Accepted Batteries | 2 (two) CR123 of Any Type: Lithium, Ni-MH, Alkaline, etc. | |||||||
| Universal Port | Yes: Video-Out and External Power (4VDC .. 15VDC) | Universal Port | Yes: Video-Out and External Power (4VDC .. 15VDC) | Universal Port | Yes: Video-Out and External Power (4VDC .. 15VDC) | Universal Port | Yes: Video-Out and External Power (4VDC .. 15VDC) | |||||||
| Battery Life | Up to 7 Hours | Battery Life | Up to 7 Hours | Battery Life | Up to 7 Hours | Battery Life | Up to 7 Hours | |||||||
| Environmental Protection | IP66 or Better (Optional) | Environmental Protection | IP66 or Better (Optional) | Environmental Protection | IP66 or Better (Optional) | Environmental Protection | IP66 or Better (Optional) | |||||||
| Dimensions | 158 x 60 x 59 mm (6.22 x 2.36 x 2.32 in) | Dimensions | 172 x 60 x 59 mm (6.77 x 2.36 x 2.32 in) | Dimensions | 172 x 60 x 60 mm (67.7 x 23.6 x 23.6 in) | Dimensions | 193 x 66 x 66 mm (7.6 x 2.6 x 2.6 in) | |||||||
| Weight | 433 grams (15.27 oz) | Operating Temperature | -40°C .. +50°C | Operating Temperature | -40°C .. +50°C | Weight | 498 grams (17.56 oz) | |||||||
| Operating Temperature | -40°C .. +50°C | Warranty | 7 Years, Limited | Warranty | 7 Years, Limited | Operating Temperature | -40°C .. +50°C | |||||||
| Warranty | 7 Years, Limited | Export | Available Worldwide (Canadian Export Permit Required. GSCI provides assistance in obtaining the Permit) | Export | Available Worldwide (Canadian Export Permit Required. GSCI provides assistance in obtaining the Permit) | Warranty | 7 Years, Limited | |||||||
| Export | Available Worldwide (Canadian Export Permit Required. GSCI provides assistance in obtaining the Permit) | Export | Available Worldwide (Canadian Export Permit Required. GSCI provides assistance in obtaining the Permit) | |||||||||||
